Oro - Poc - Rina
design Vistosi
Technical and aesthetic updates for collections with G9 and LED light sources
PRODUCTS INVOLVED:
ORO SP P – 16L – 25 – 25L
POC SP 16 – 16L – 25 – 25L
RINA SP 16 – 16L – 25 – 25L
Technical improvements
- Aesthetic alignment between the G9 and LED variants, with formal harmonisation of the different versions to ensure visual continuity and consistency across the range. In this context, the closing cup has also been redesigned and increased in height to achieve a cleaner and more balanced appearance. It is now equipped with a recessed surface that facilitates centring between the frame and the glass, improving precision, assembly speed and overall stability.
- Unification of the glass opening, enlarged to improve compatibility and resistance.
- Adaptation of the ring to the new glass hole diameter.
- Increased safety: structural improvements have been introduced in both variants to enhance product safety and long-term reliability.
- Tool-free mounting system for both versions. The LED version is equipped with pawls designed for hand tightening, while the G9 version uses an enlarged thread that facilitates glass centring, preventing screwing errors and preserving thread integrity over time.
The modifications made to the glass opening and to the structure mean that the components (glass and frame) are not compatible with the previous version of the product. Therefore, if one of these elements needs to be replaced, a new complete lamp must be supplied.

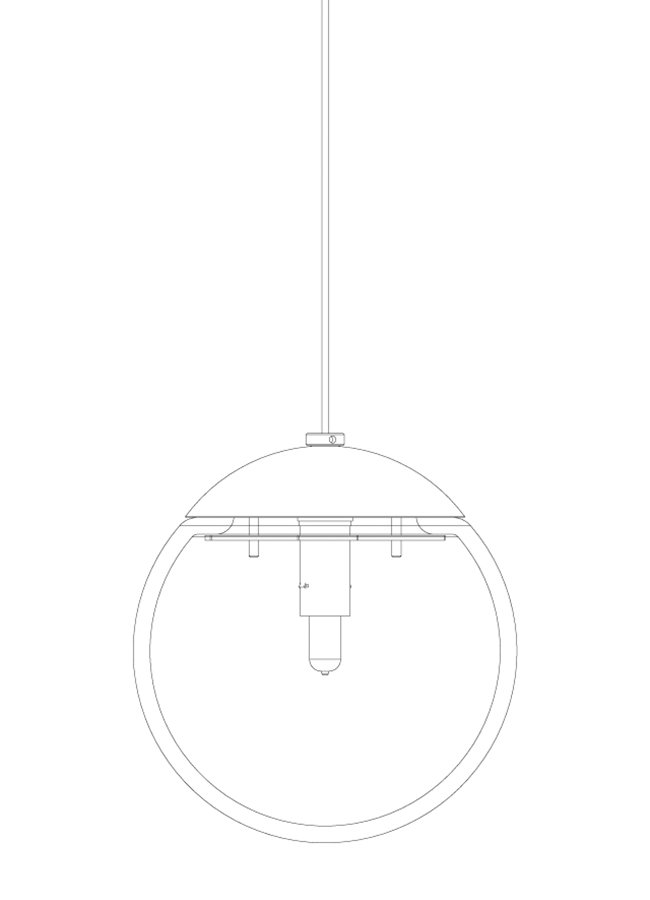

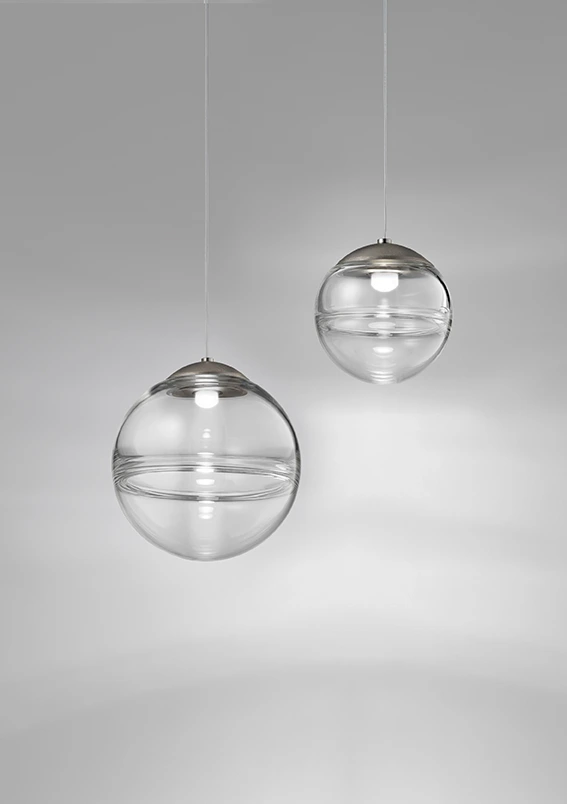

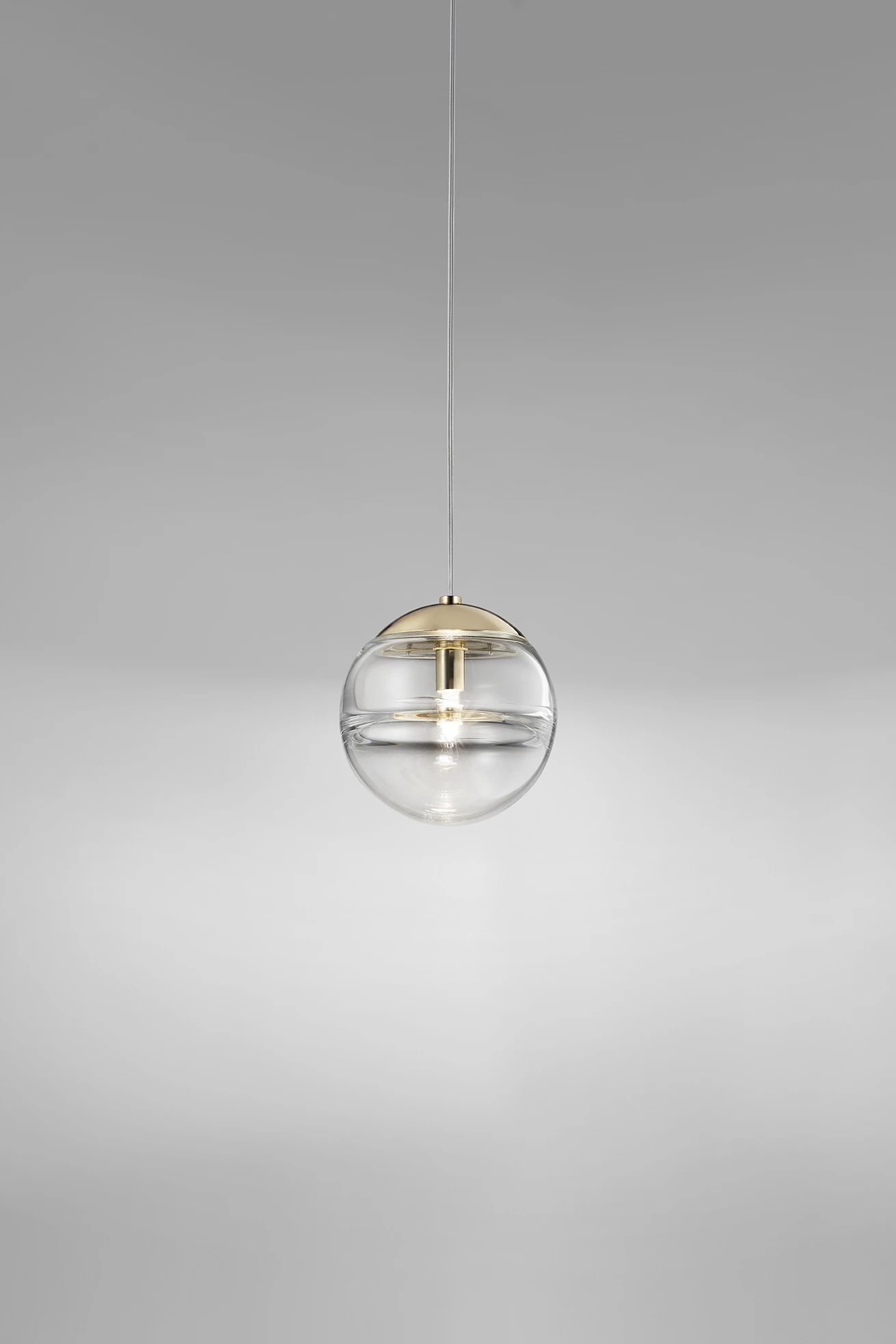

ORO

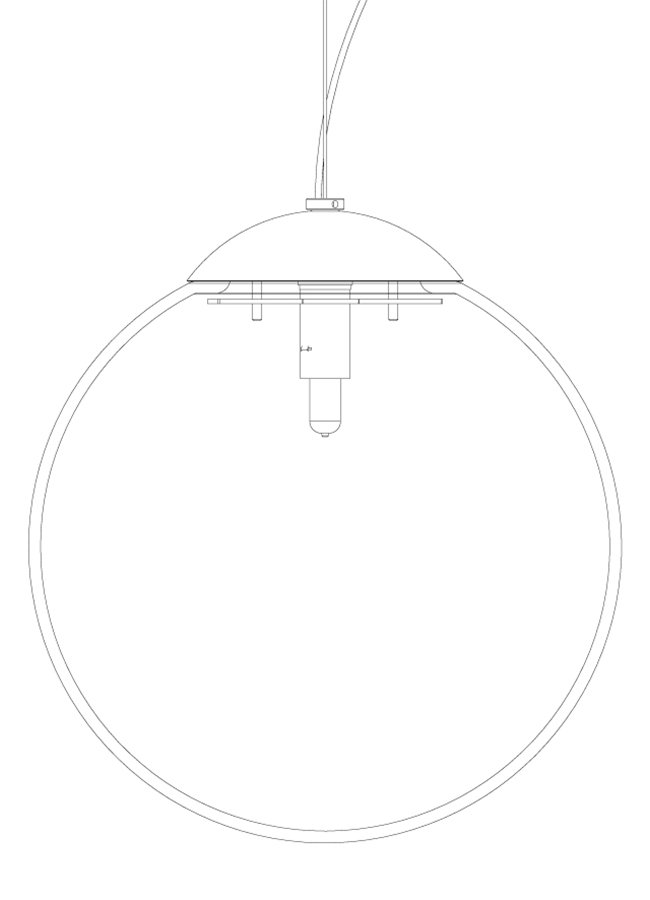

NEW VERSION

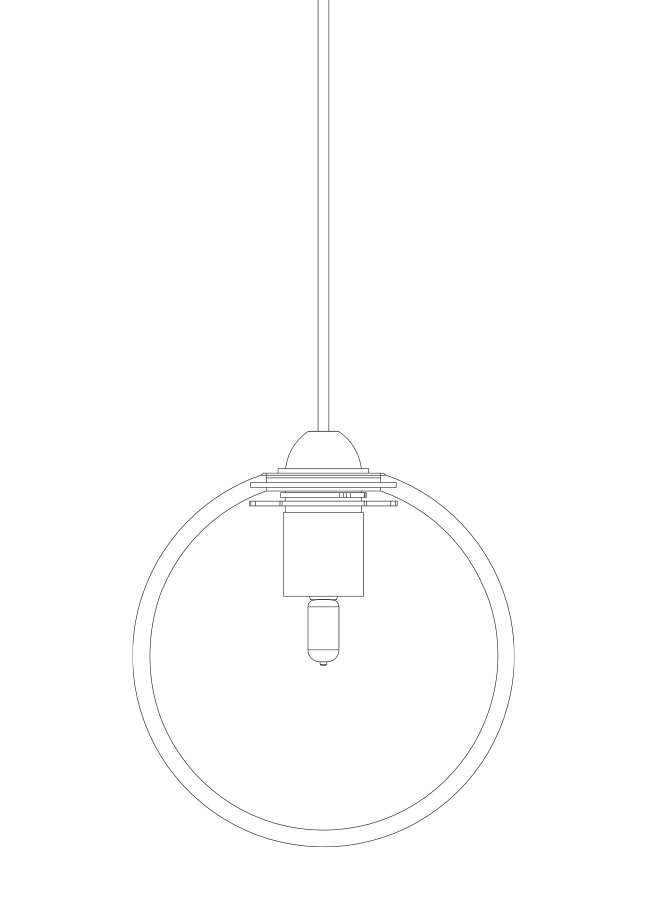

OLD VERSION

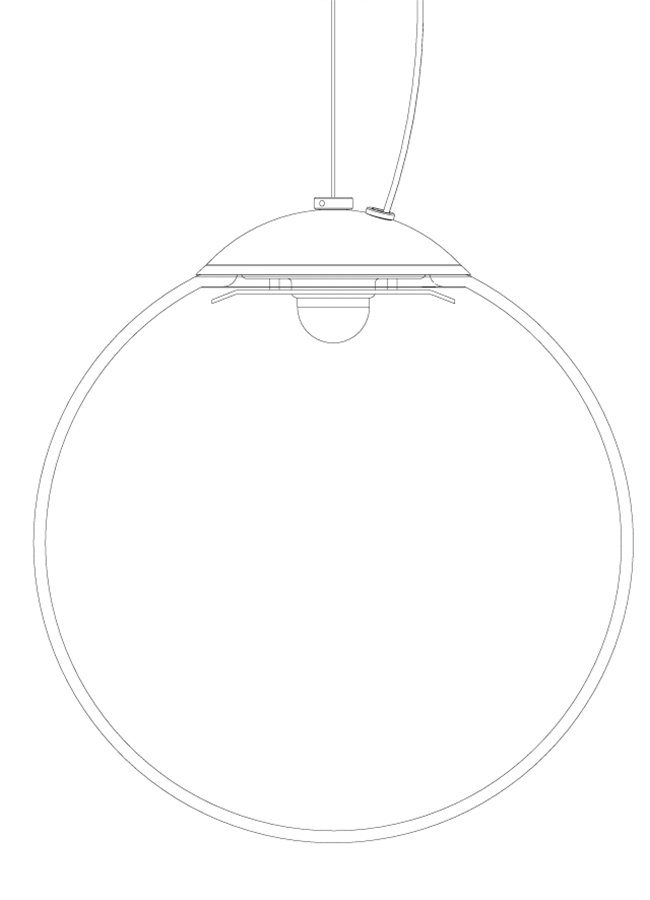

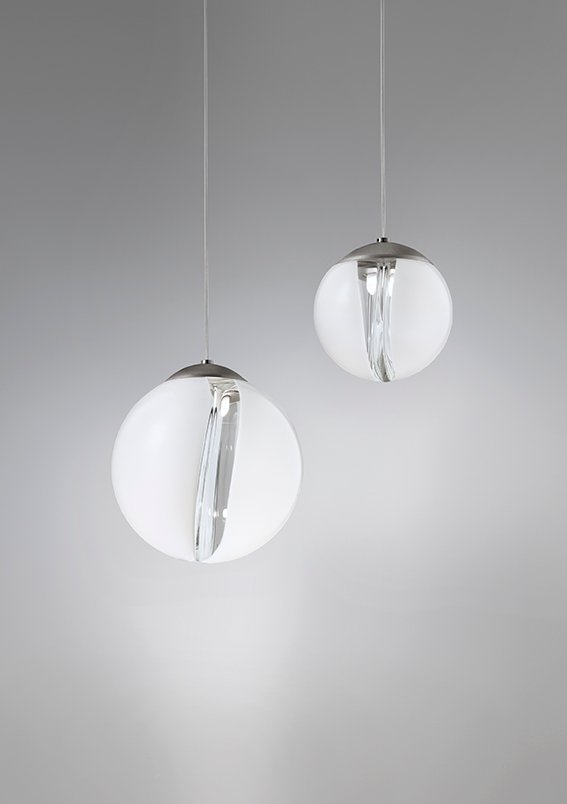

POC

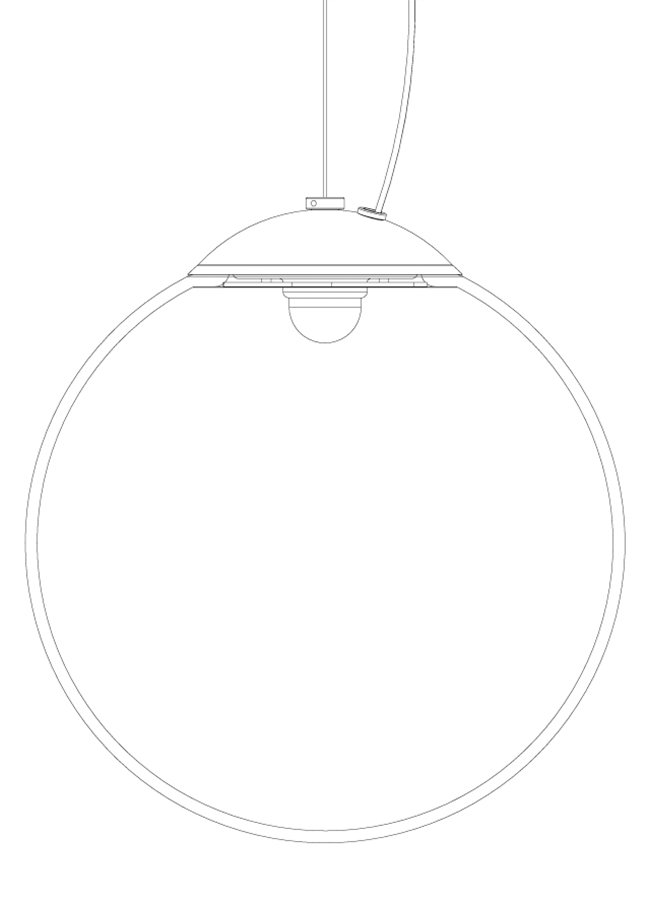

NEW VERSION

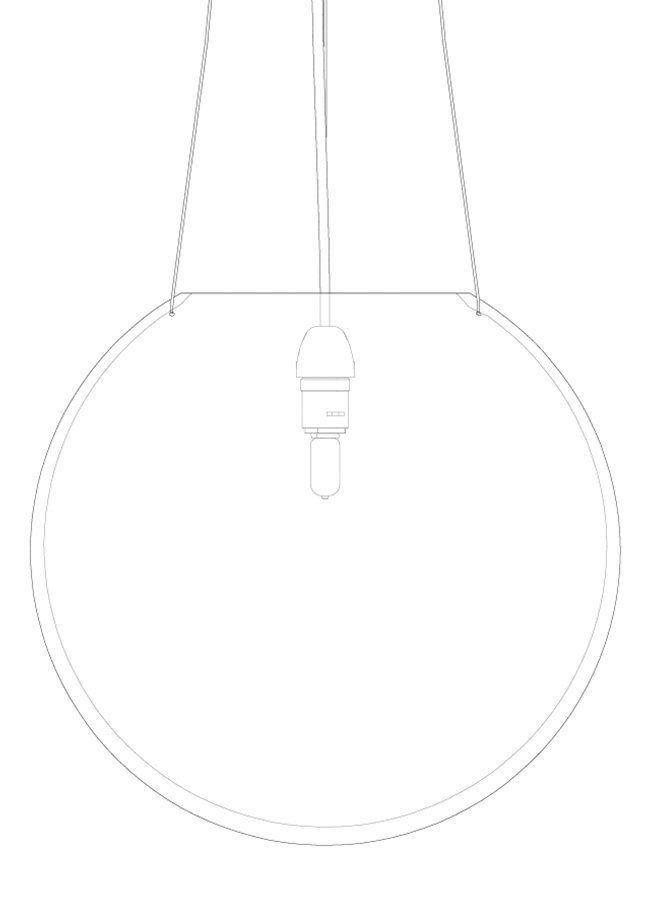

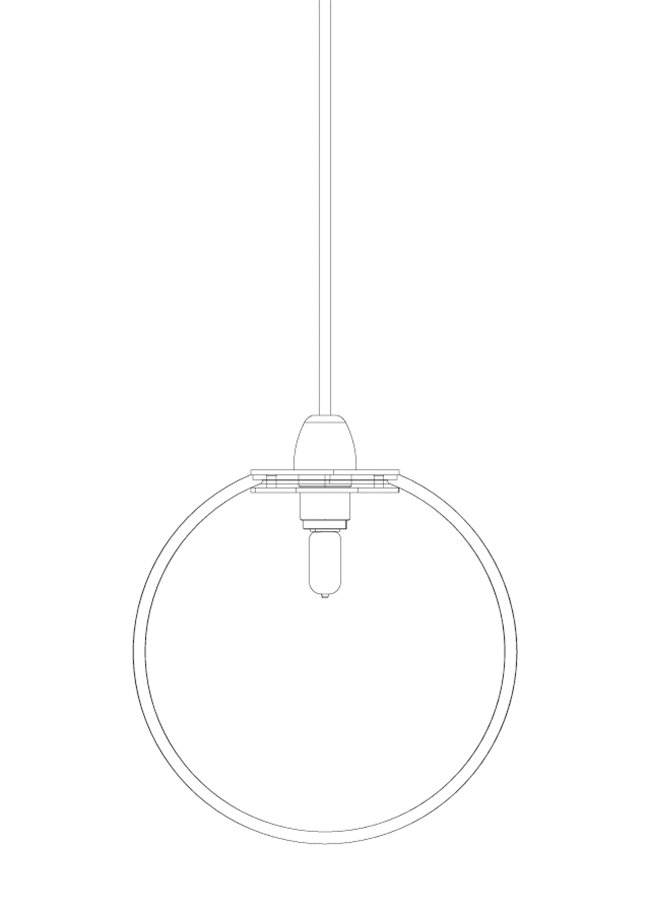

OLD VERSION

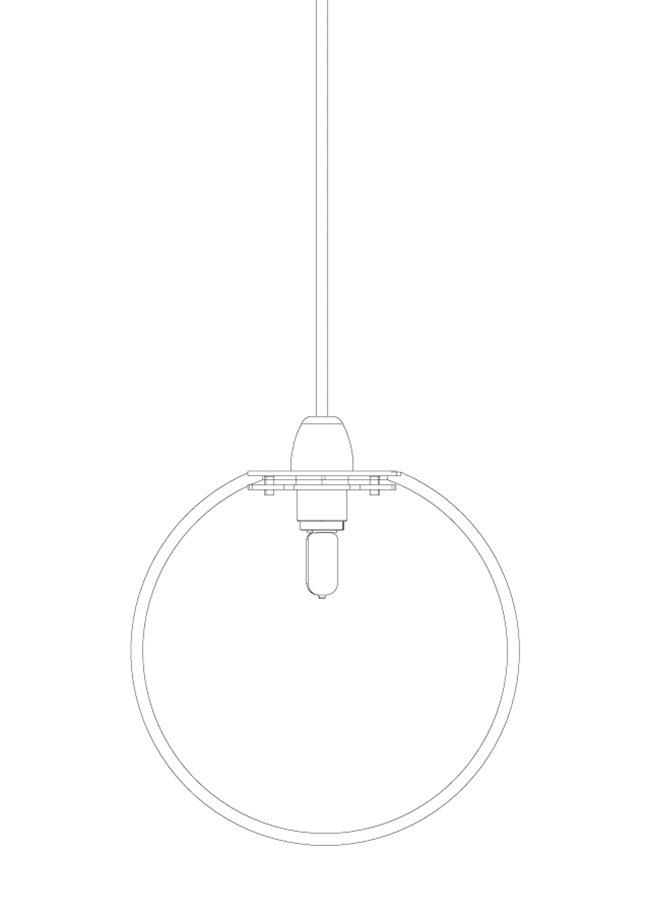

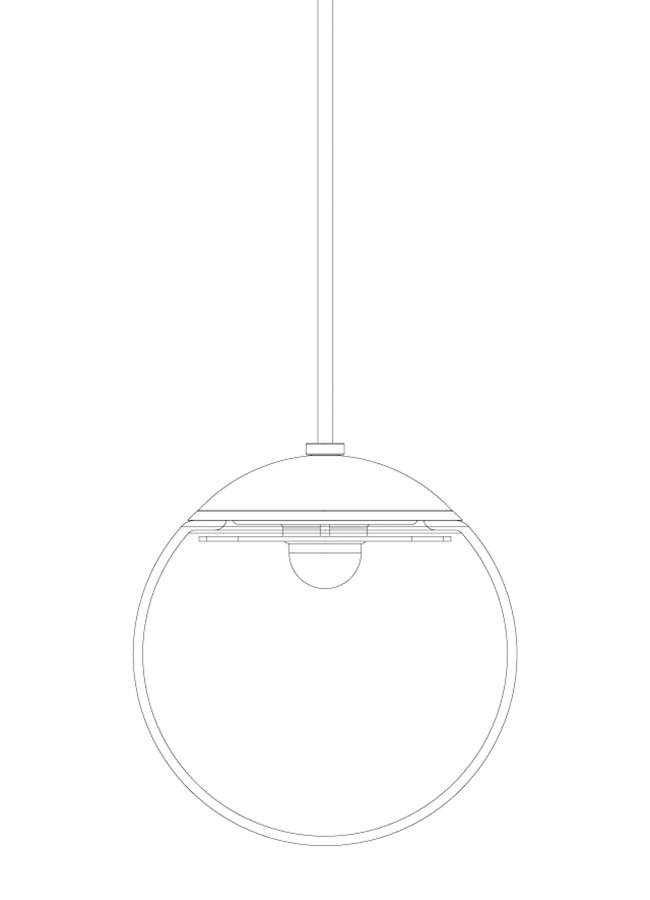

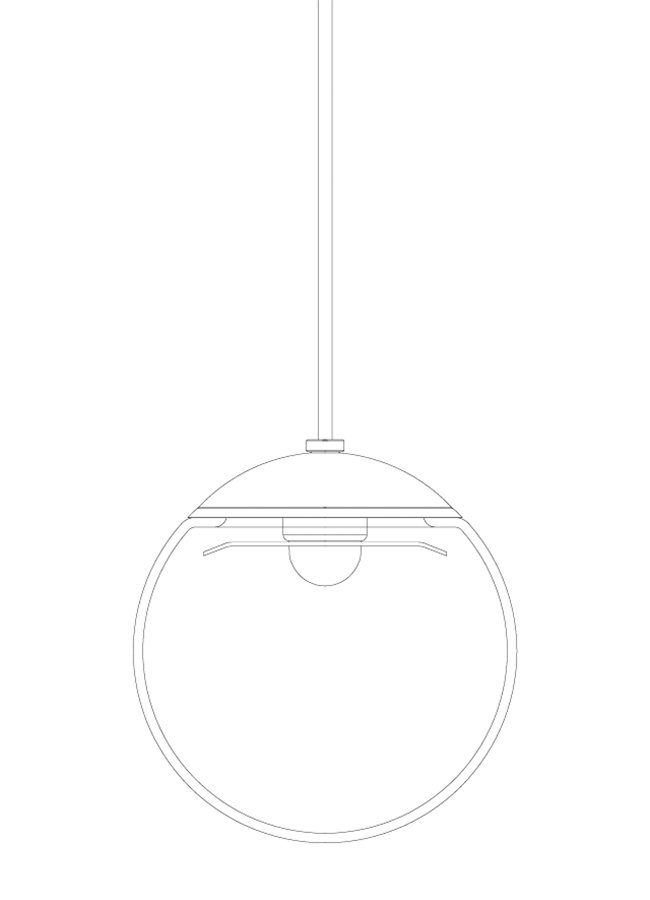

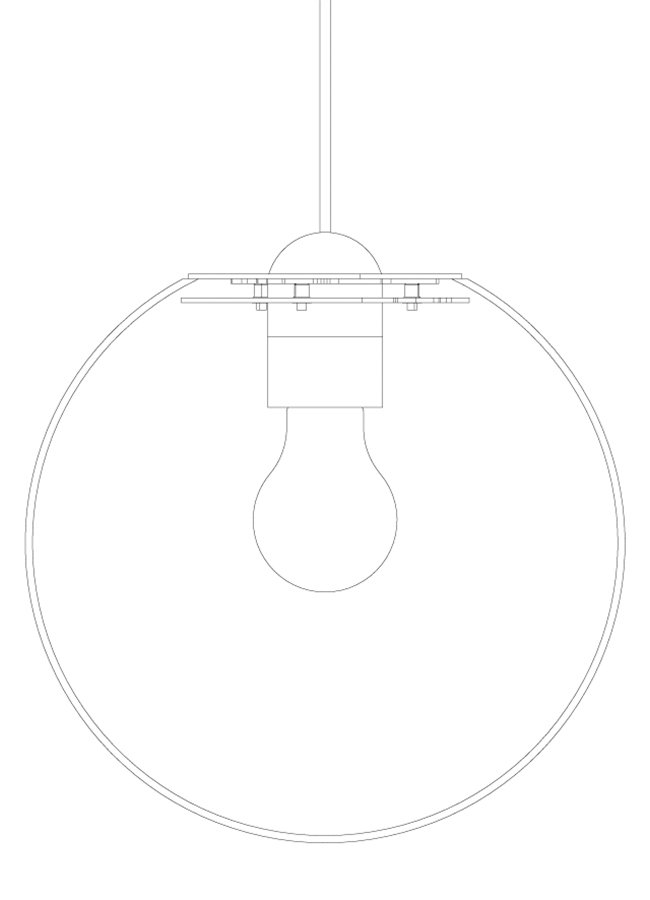

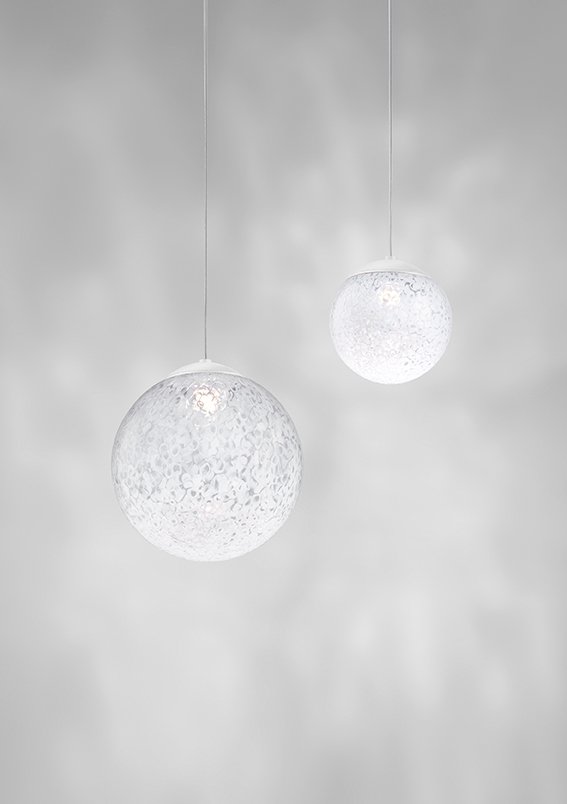

RINA

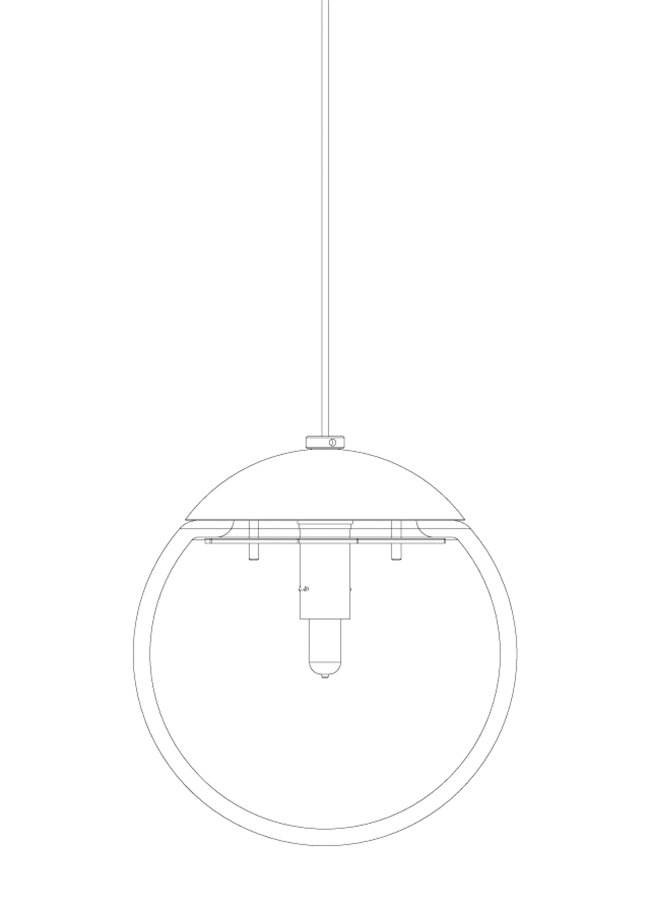

NEW VERSION
OLD VERSION
MORE DETAILS
Interchangeability of frames
The standardisation of the glass inserts ensures total interchangeability between diffusers and frames. This modularity allows, on request, even versions that do not normally include a steel safety cable to be equipped with one, ensuring maximum customisation flexibility.
This option is exclusively available for versions P, 16 and 16L. These suspensions feature a single suspension cable, which also serves as the electrical cable.
